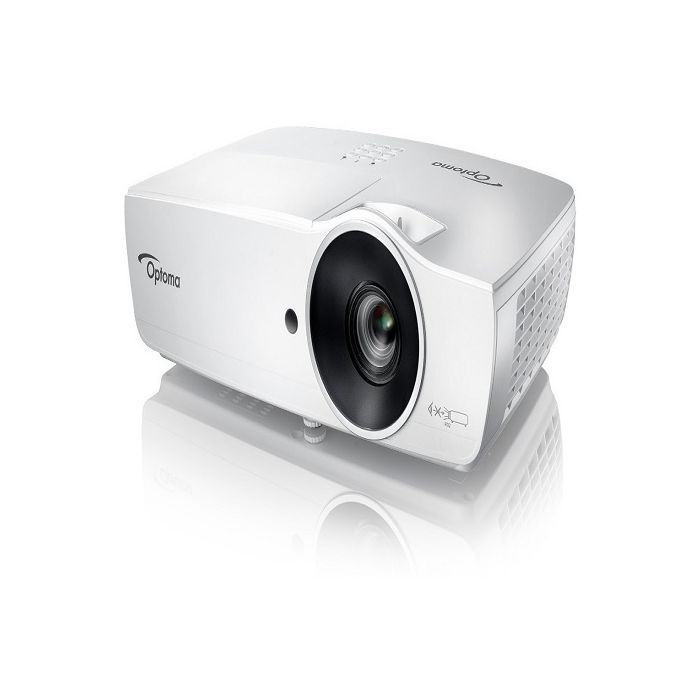

OPTOMA EH465 DLP 4800 LUMENS PROJECTOR - TECHNICAL SPECIFICATIONS
Aspect Ratio 16:9
Audio 10W
Brightness 4800 ANSI lumens
Compatible Aspect Ratio 16:9 (native), 16:10, 4:3 and LBX compatible
Connections 2xHDMI (with MHL), VGA-in, VGA-out, audio-in (3.5mm), audio-out (3.5mm), RJ-45, 1x USB (Wi-Fi adapter), 1x USB (USB reader and USB power), USB-B Mini (service), 12V trigger (3.5mm), RS-232C
Contrast Ratio 20,000:1
Control Unit Complete on-screen menu adjustment in 26 languages
Display Technology Single 0.65” DMD S600, DC3 chip DLP® Technology by Texas Instruments
Displayable Colors 1.07 billion
Image Size 25.9’’ – 324.9’’
Keystone Correction ±30° vertical / ±25° horizontal
Light Source Life 2500
Light Source Type 285W
Light Source Life 4,500/3,500/2,500 (EDU/ECO/Bright)
Lens Shift None
Maximum Resolution WUXGA (1920×1200)
Native Resolution 1080p (1920×1080)
Noise Level 31dB/37dB (Eco/Bright)
Offset 114.9%±5%
On-Screen Display Complete on-screen menu adjustments in 26 languages
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 370W typical (Bright mode), 390W max (Bright mode), 300W typical (Eco+ mode), 320W max (Eco+ mode)
Power Supply AC input 100-240V, 50-60Hz, auto-switching
Projection Distance 3.93’ – 49.1’ (no zoom)
Projection Lens F=2.42 ~2.97, F=20.70 ~ 31.05mm manual
Projection Method Front, rear, ceiling count, tabletop
Projection Screen Size 25.9’’ – 324.9’’
Remote Control Full size remote
Throw Ratio 1.39 – 2.09
Uniformity 0.75
Zoom Type 1.5x optical, 0.8 – 2.0x digital
COMPATIBILITY SPECIFICATIONS
Computer Compatibility FHD, HD, WXGA, UXGA, SXGA, XGA, SVGA, VGA, Mac
Horizontal Scan Rate 25 – 85Hz (120Hz for 3D)
Optional Wireless Yes
RoHS Compliant
Vertical Scan Rate 15 – 91kHz
Video Compatiblity PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 12.20” x 8.66” x 3.93”
Security Security bar, Kensington lock, password protection
Weight 6.75 lbs
Other
Optional Accessories Universal ceiling mount, DLP®Link™ 3D glasses, lamp, remote, WUSB (Wi-Fi adapter replacement)
Standard Accessories AC power cord, remote control, USB Wi-Fi adapter, carrying case, batteries for remote, multilingual CD-ROM user’s manual, quick start card, and warranty card
